The Triad-Orbit, Precision® AV Atmos Speaker Mount System offers many options for mounting onto walls, ceilings or Triad-Orbit® IO. This uniquely designed patent-pending speaker mounting system allows the installer to meet the critical demands of Dolby Atmos installations providing unparalleled flexibility in mounting and alignment options, saving time in installation and laser alignment. SM-1 system features multiple speaker mounting plates for different manufacturers, dual redundant locking mechanisms, and 15 degree locking positions in both tilt and pan axis. Optional mounting configurations are available to accommodate wall, ceiling, long drop ceiling, pipe and truss mounting.

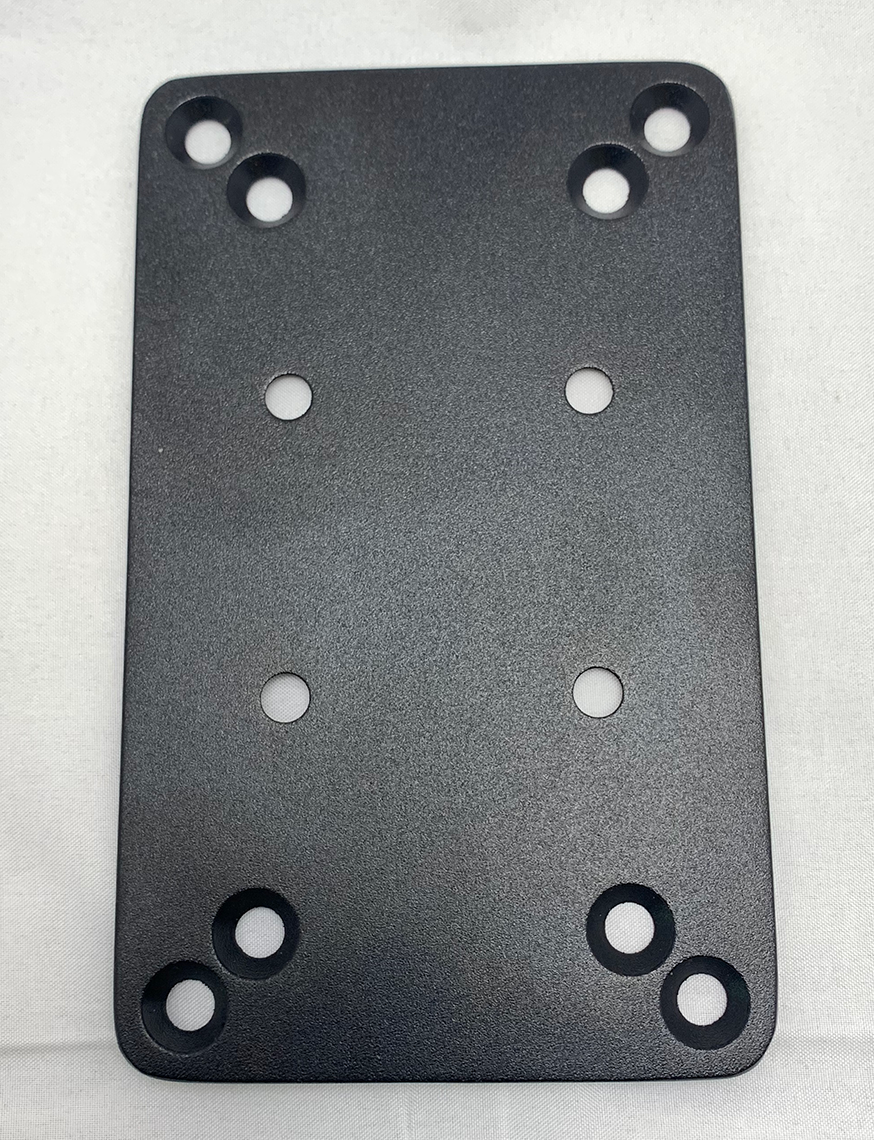

- SM-GP (Genelec) speaker plate has four (4) holes spaced 127mm X 70mm to accommodate Genelec One series speakers and (4) holes spaced 108mm X 51mm for smaller Genelec speakers. Note: Many Genelec and other speakers may connect directly to the SM-SW1 using the 50mm-80mm slotted holes.
