GigMix 4-1

249,00

EAN: 851337007404 Artikelnummer: 78-90010 Hersteller/Kategorie: Tags:

Beschreibung

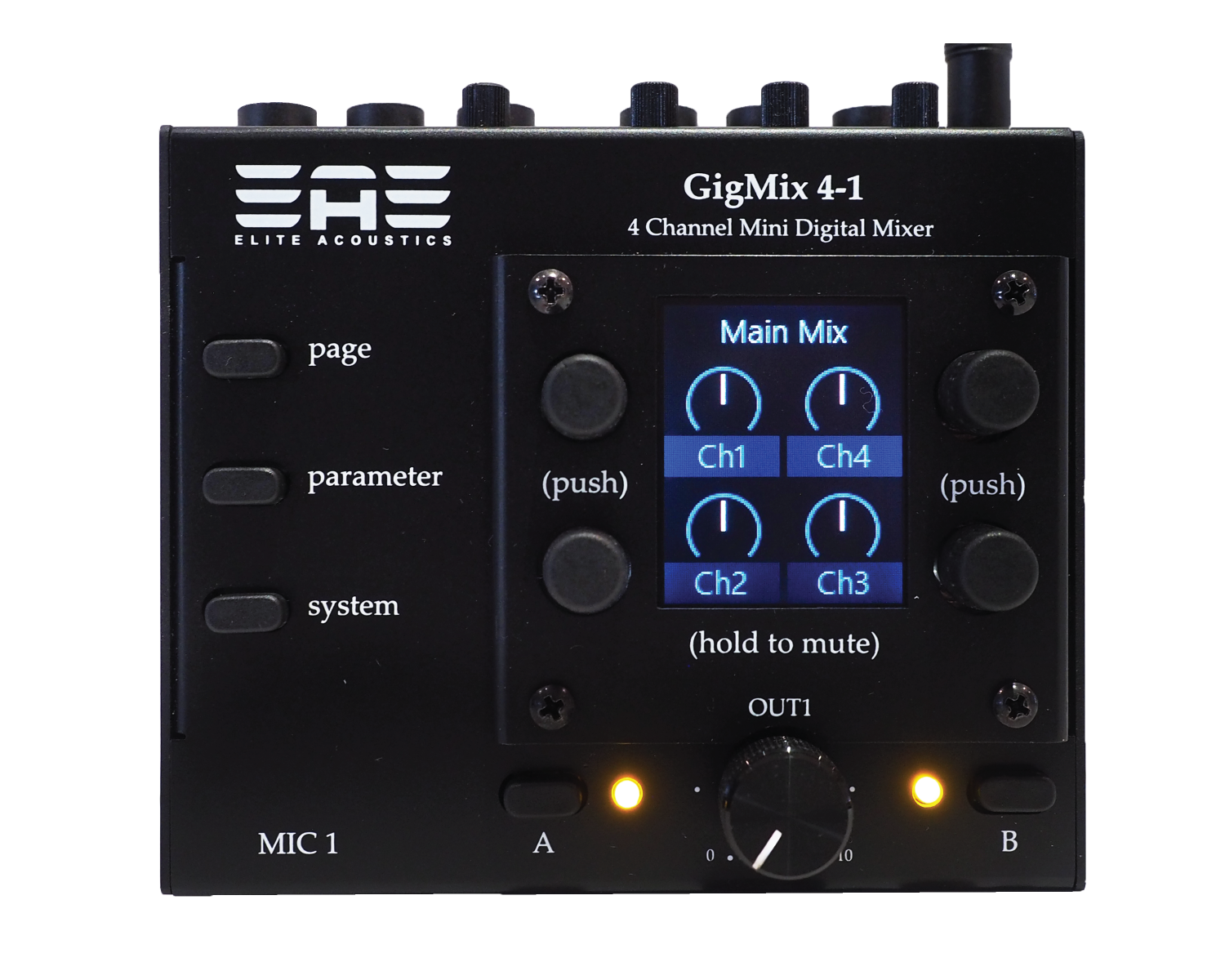

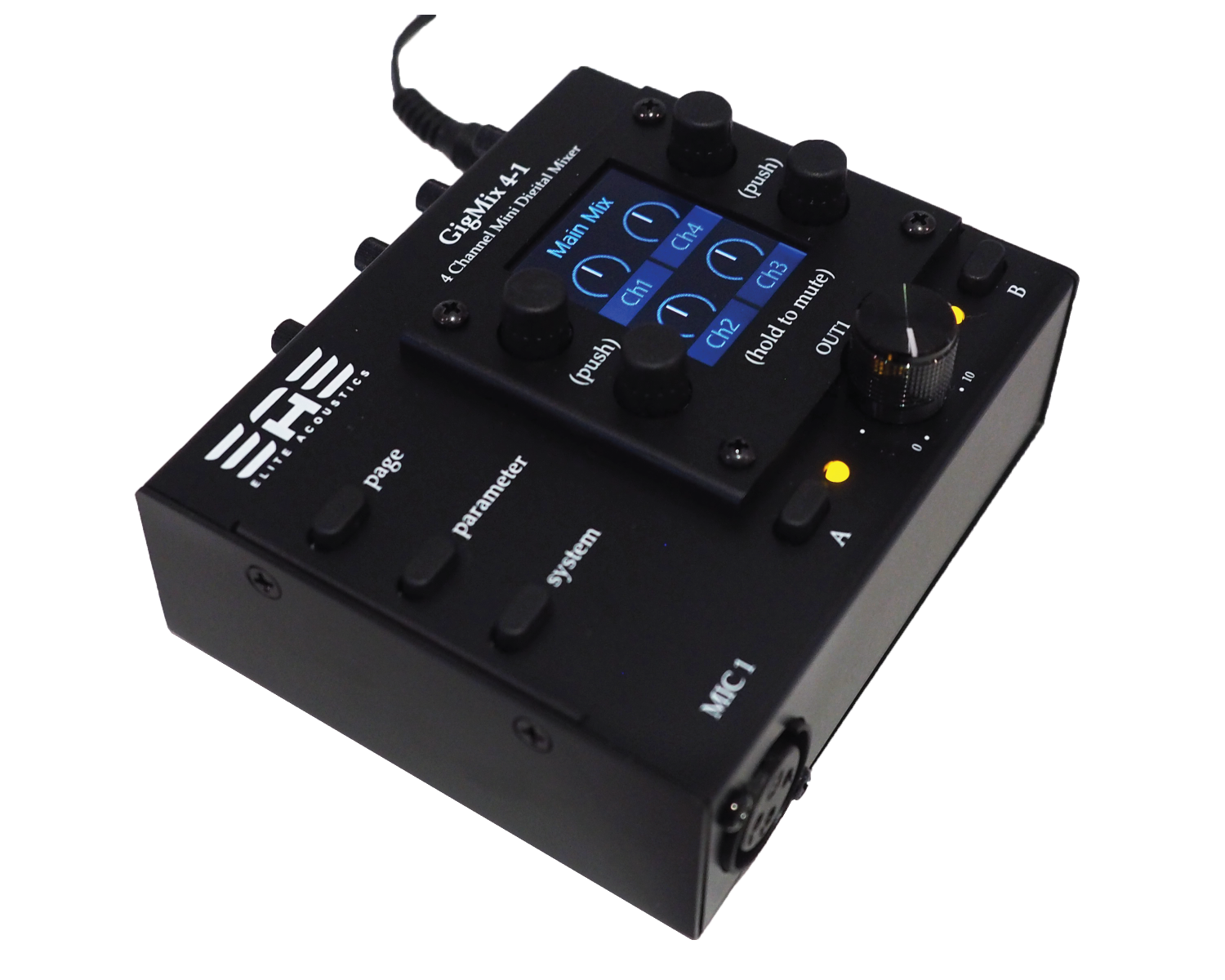

Digital Mixer Pedal

GigMix 4-1 mini Digital mixer, porting the engine from the StompMix 4, the GigMix 4-1 is built with a powerful 32-bit 100Mhz DSP engine and a compact lightweight pocket size package. The GigMix 4-1 mini digital mixer offers a full-featured, highly intuitive 4-channel Digital Mixer with a Colour Display. 4 effects level control for Reverb and Shimmer. Assignable Delay effects. The DSP engine provides a compressor, limiter, Mid sweepable EQ, Highpass Filter, Notch Filter, Phase reverse to each of the 4 inputs.

Analog inputs consisted of 1 Class A solid-state Mic pre-amps and three 1/4″ TS line/Instrument inputs. Two sets of stereo Mix outputs are selectable between a 1/8″ TRS jack and 2 1/4″ TRS jacks with output level control knob. 2 assignable switches, 1/4″ TRS Balanced outputs. 10 Memory for easy recall and set up. Mic Stand mounting accessory is also available. The size/functionalities of the Gigmix 4-1 mini digital mixer makes it the great pocket live gig mixer to your guitar/vocal setup.

Features:

  • 4-Channel Mini Digital Mixer
  • 10 user scene memories.
  • Color display
  • Input Level Monitoring
  • 1 Class-A Mic inputs with TRIM (CHAN 1)
  • 3 LINE/INSRT inputs with Level Control(CHAN 2, 3 and 4)
  • Independent Reverb, Shimmer effect on each channel
  • 2 notch filter available on each channel
  • High Pass Filter and Phase Reverse on each channel
  • Noise Gate and Compressor on each channel
  • 3 Band EQ with Sweepable MID on each channel
  • Max 1 second Delay with Tap Tempo (assign to one Channel at a time)
  • Assignable A/B switch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)

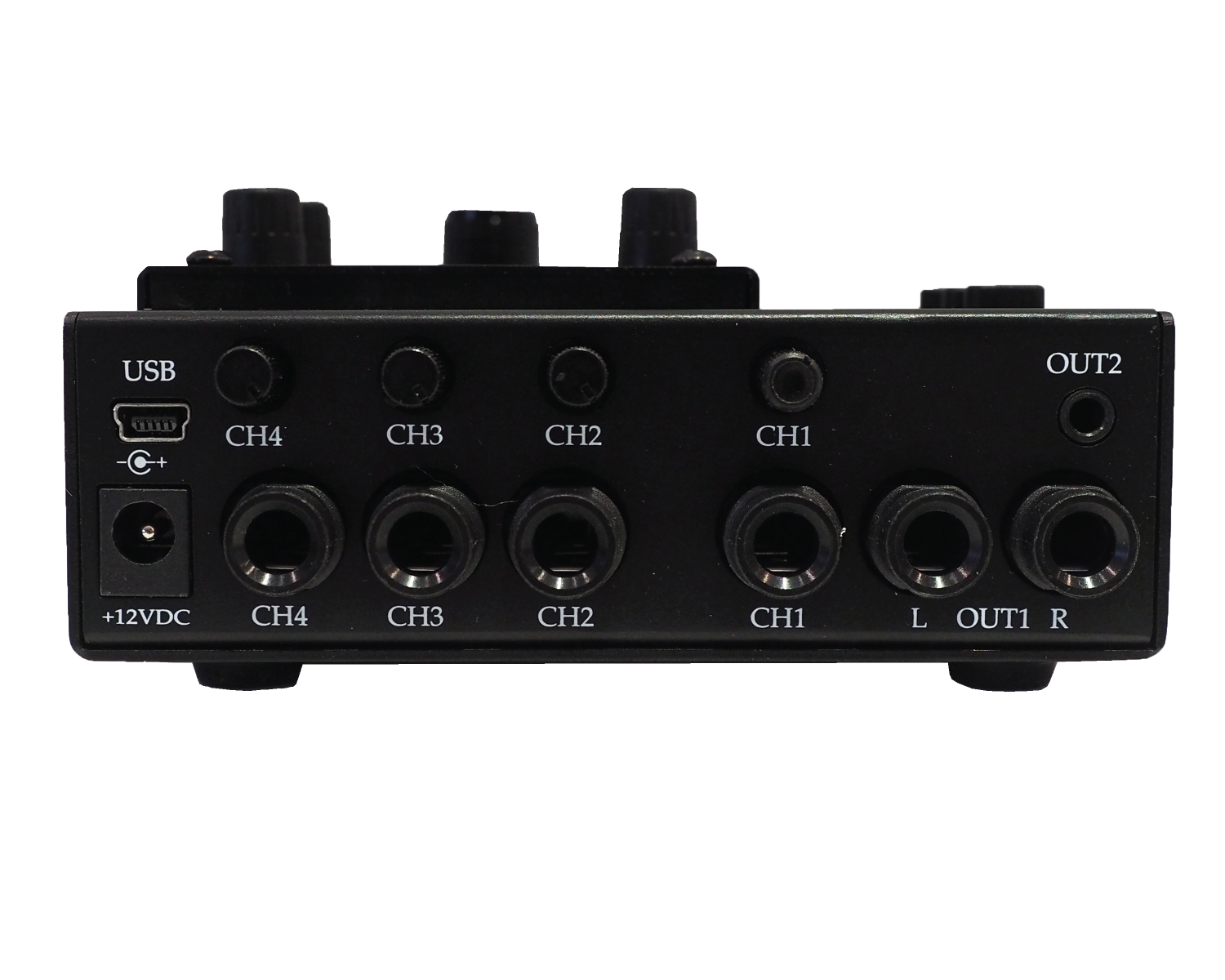

  • Output 1 (L/R TRS 1/4″ jacks) – Balanced
  • Output 2 (Stereo TRS 1/8″ jack)
  • Output 2 can be used for Headphones
  • Main MIX and AUX MIX
  • Scenes Change  – via A/B switches
  • Metal chassis
  • AC/DC power supply included
  • Support 9VDC to 12VDC power inputs (500mA, 2.1mm *Center Positive*)
  • Designed and assembled in USA
