Calibrated Measurement Microphone


Verfügbarkeit: Bitte kontaktieren Sie uns! EAN: 4751023410401 Artikelnummer: 61-90013 Hersteller/Kategorie:

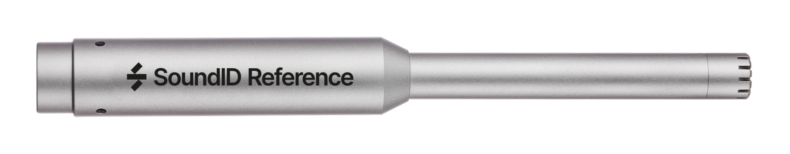

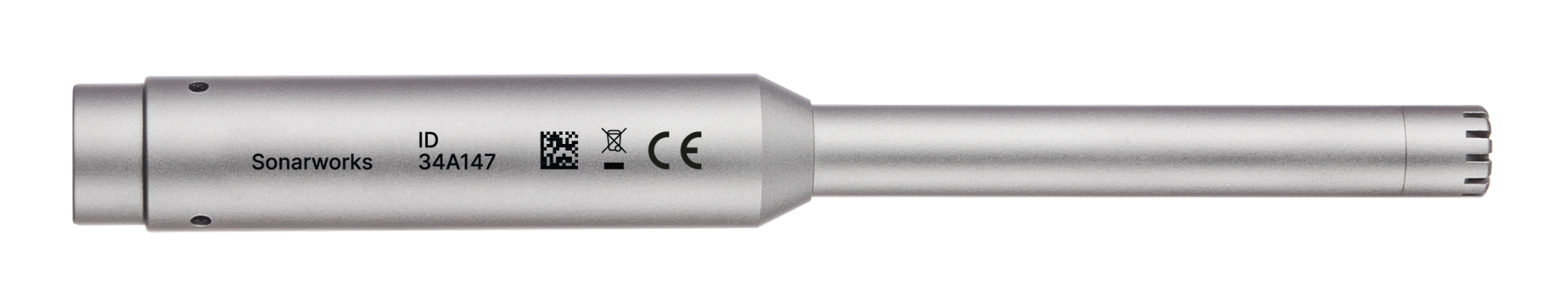

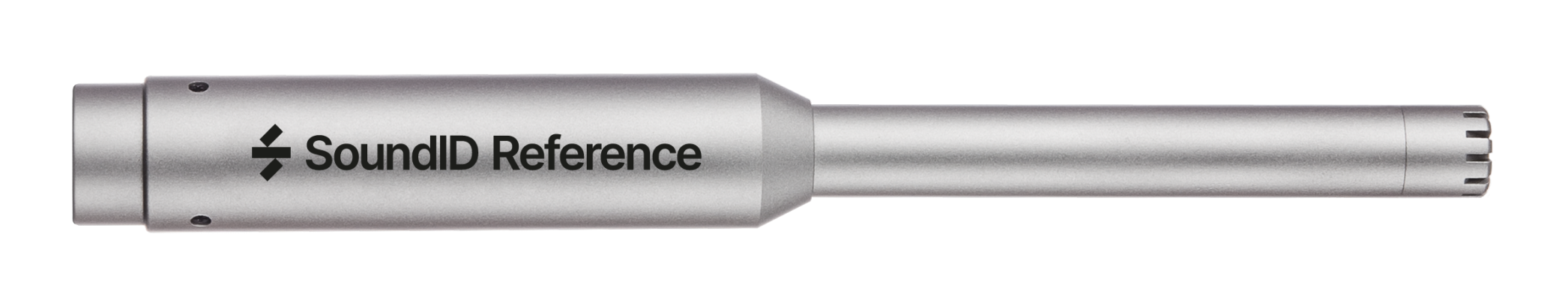

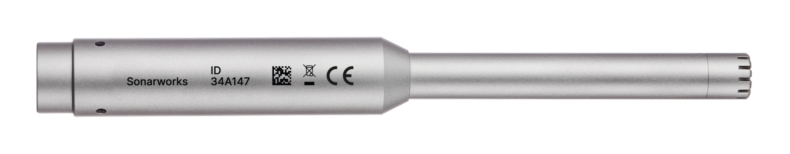

An omnidirectional measurement microphone with individual calibration profile.

Every microphone has been measured by Sonarworks acousticians against an ANSI certified measurement microphone. This means perfect accuracy within the audible range and
freedom from sample-to-sample irregularities.
Every user can download a 21-day trial for SoundID Reference for Speakers &
Headphones. Enjoy unlimited functionality and finally hear how your speakers really


  • SoundID Reference Measurement Microphone with XLR connection
  • Microphone calibration file for 30° off-axis measurements in .swmic format
    (Sonarworks software native format) to be used with SoundID Reference
  • Microphone calibration file for 0° on-axis measurements in .txt format for
    third-party use
  • 21-day trial of SoundID Reference available online
  • Houses a pre-polarized electret-condenser capsule
  • Frequency response: 20 Hz – 20 kHz with a supplied calibration profile
  • Omnidirectional polar pattern
  • Sensitivity is rated at -37 dB/Pa (14 mV)
  • Self noise: 24 dB
  • S/N ratio: 70 dB
  • Dynamic range: 106 dB
  • Maximum SPL: 132 dB
